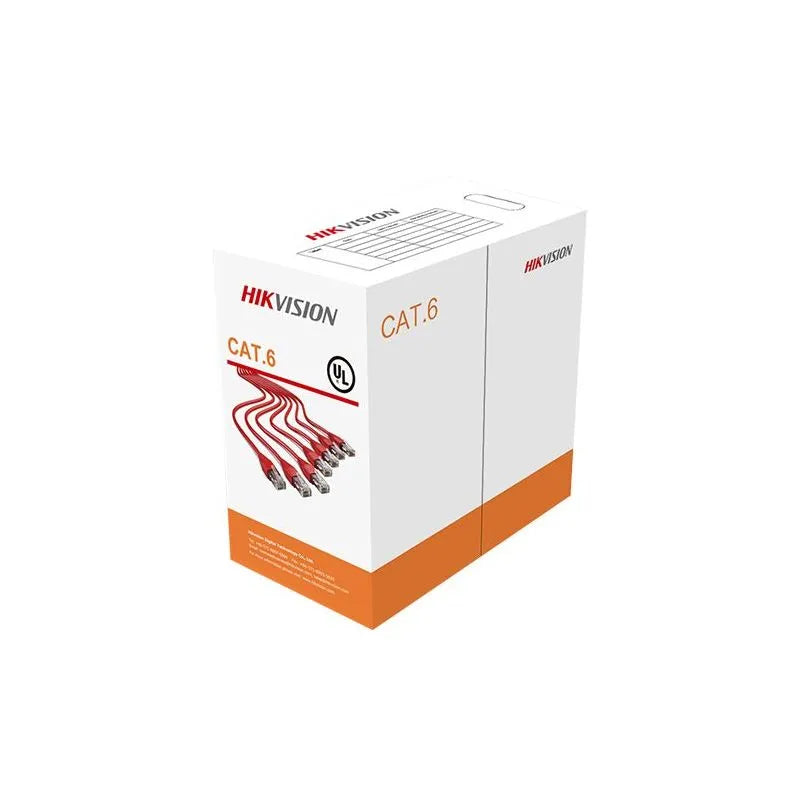

Hikvision DS-ILN6U-SCO 305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm, Orange)

Hikvision DS-ILN6U-SCO CAT6 UTP Network Cable offers reliable connectivity with stable electrical performance. This cable, featuring a solid copper conductor with a diameter of 0.55 mm and an orange sheath, ensures superior transmission performance. Compliant with ANSI/TIA-568-C.2, IEC61156, and ISO/IEC11801 standards, it meets industry requirements for network infrastructure. Additionally, it is RoHS 2.0 compliant, demonstrating environmental responsibility. With a sheath boasting strong mechanical properties, high tensile, and compressive strength, it reduces damage during installation. It excels in the Fluke 90-meter permanent link test, even at 50°C, and performs admirably in the Fluke 100-meter channel test under continuous 57 V/1 A DC power load (PoE).

Technical Specifications:

• Cable Type: CAT6 UTP Network Cable
• Conductor: Solid-Bare Copper
• Conductor Diameter: 0.55 mm
• Sheath Color: Orange
• Compliance: ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801, RoHS 2.0
• Mechanical Properties: High Tensile and Compressive Strength
• Performance: Excellent in Fluke 90-meter Permanent Link Test at 50°C, Fluke 100-meter Channel Test under Continuous 57 V/1 A DC Power Load (PoE)
