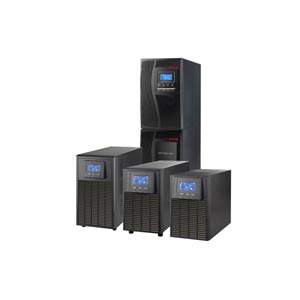

Online UPS PCE EX10k Online Double Convertion, Single Phase 10KVA 20 × 9 A.h

Online UPS PCE EX10K is a high-capacity, advanced uninterruptible power supply (UPS) designed for critical applications that require reliable and uninterrupted power. With a power rating of 10KVA, this UPS is perfect for large data centers, industrial equipment, medical facilities, and other sensitive devices. The double conversion online technology continuously converts incoming AC power to DC and then back to AC, providing a pure sine wave output that ensures clean and stable power delivery regardless of input fluctuations.

Technical Specifications:

• Capacity: 10KVA
• Technology: Double Conversion Online
• Waveform: Pure Sine Wave
• Power Output: 10KVA
• Input Voltage: 220V / 230V / 240V (adjustable)
• Output Voltage: 220V / 230V / 240V
• Frequency: 50Hz / 60Hz (auto-sensing)
• Battery Configuration: 20 x 9 Ah internal batteries
• Backup Time: Varies based on load, typically 10-30 minutes at full load
• Transfer Time: Zero (instantaneous due to double conversion technology)
• Efficiency: Up to 90% in online mode
• Protection: Overload, Short Circuit, Surge Protection, and Battery Overcharge Protection
• Communication Interfaces: RS232, USB, Optional SNMP card for remote monitoring
• Display: LED or LCD for real-time monitoring of input/output voltage, battery status, and load
• Cooling System: Forced air cooling for efficient heat dissipation
• Operating Temperature: 0°C to 40°C
